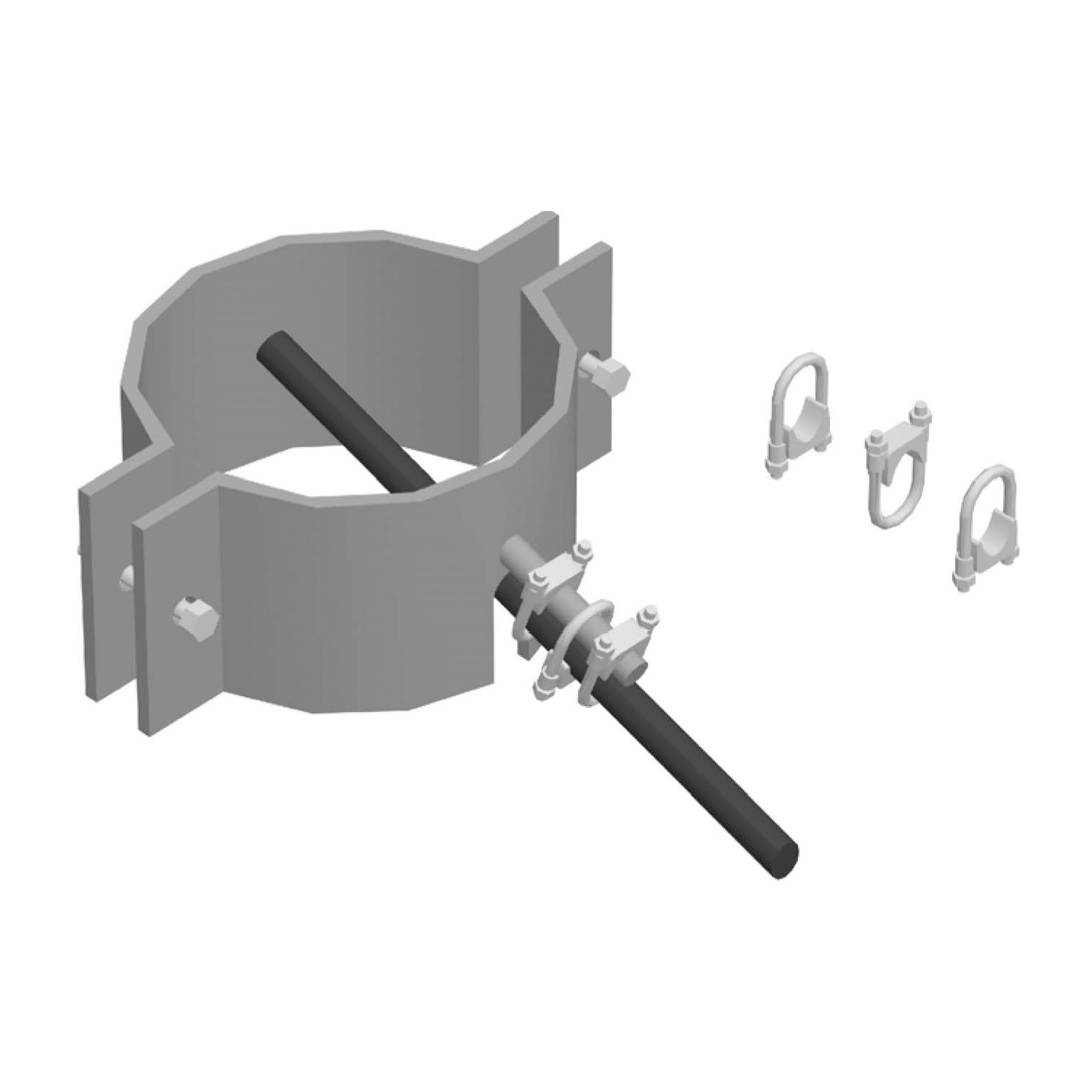

Temporary Pole Repair Bracket


a) Water side bent plate to slide over exist. tie-rod
b) Front bent pit to be bolt connected to water side pit.
c) Connect old tie-rod to new rod w/ 3 cable clamps
d) Welding is recommended for a stronger connection
e) Install new washer & double nut over front bent plate
